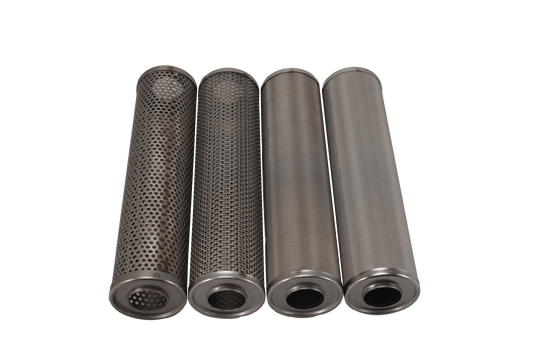

Stainless Steel Mesh Cartridges

Reusable stainless steel mesh filter cartridges with double open ends (DOE), in 2.5 in, 4.5 in jumbo and φ133 mm diameters. Listed in 100, 200 and 300 mesh. Clean and reuse them instead of throwing cartridges away.

Read more

Which diameter fits my housing?

  • 2.5 in (60 mm ±1 mm outside diameter): our 2.5 in housings and other 2.5 in DOE housings of the same length.
  • 4.5 in jumbo (102 mm ±1 mm): the jumbo housing.
  • φ133 mm: the large-bore housing.

Measure the outside diameter and length of the cartridge you use now. The filter cartridge size guide shows how.

Mesh count

These cartridges are rated by mesh count: a higher mesh count means a finer screen. We list mesh count only and do not convert it to microns. Other mesh counts are quoted on request.

Need a threaded or tri-clamp end?

For a mesh element with a male thread or tri-clamp end, for example as a pump inlet strainer, see the stainless mesh filter element.
